MuscleSquad Advanced Multi-Functional Trainer
Product Code: MSAMFT
SAVE 15% ON THIS PRODUCT
Code: BF15
£2,995
Take your training to the next level with the MuscleSquad Advanced Multi-Functional Trainer – the ultimate all-in-one home gym solution. Fitted with three weight stacks (including a new 120kg rear central pulley), an in-built 250kg-rated smith machine, half rack functionality for lifts off the front of the machine plus all the accessories and attachments you could need, the Advanced Multi-Functional Trainer has it all.
PRODUCT DESCRIPTION

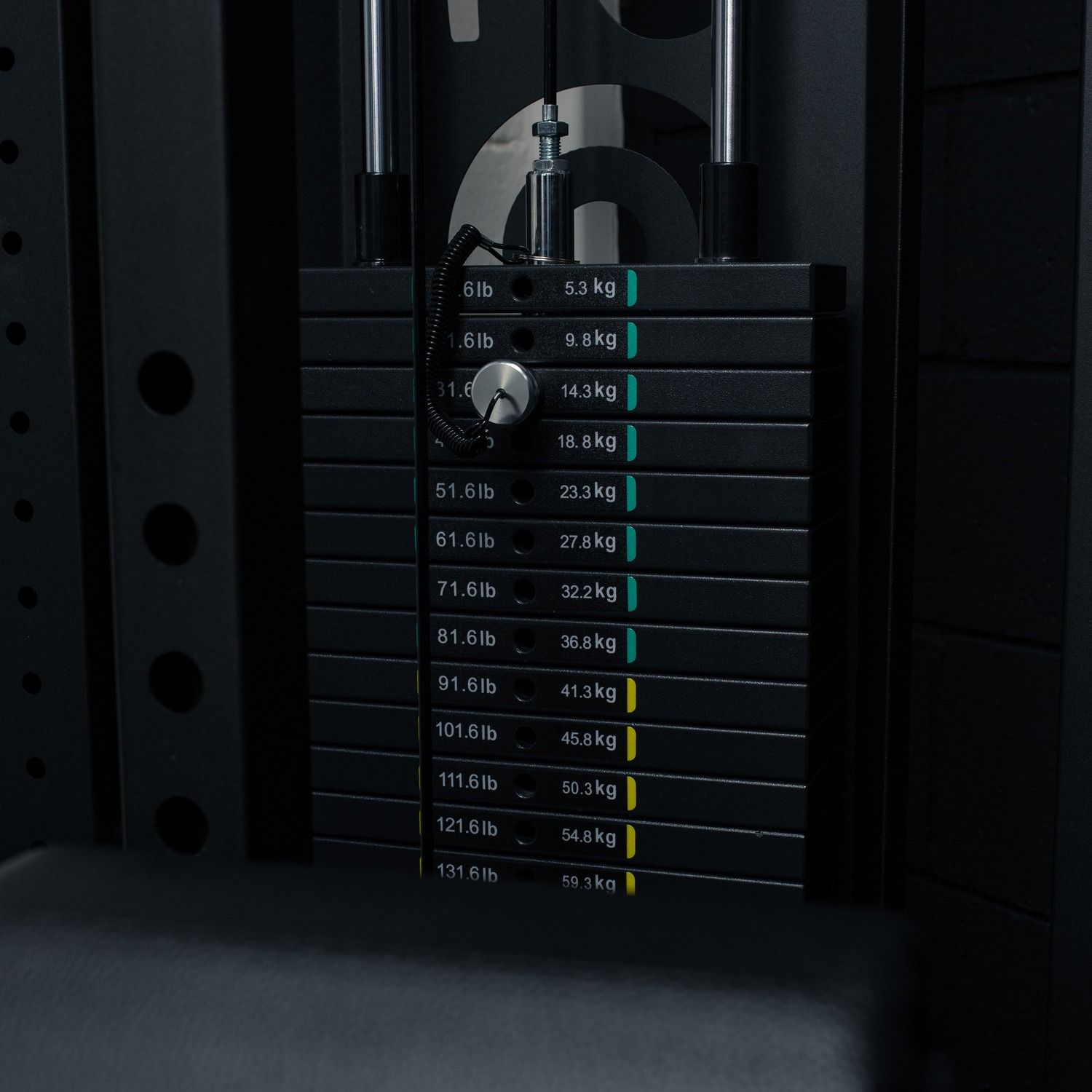

MuscleSquad took inspiration from their popular Multi-Functional Trainer, building on the platform with the addition of a third weight stack for the rear central pulley. This impressive 120kg weight stack works on a 1:1 ratio, with a designated attachment column for attachments like an adjustable lat pulldown seat, perfect for performing all your heavy cable lifts. The weight stacks on either side of the machine come in at 90kg each on a 2:1 ratio, which allow for smaller incremental jumps in weight and longer overall cable travel. Each plate increases in 4.5kg increments, but the rack also features built-in 2.5kg increment plates that bridge the gap when you’re not ready to make the full 4.5kg jump.
The weight stacks are shrouded for safety, with easy weight adjustments via pull pins. The Advanced Multi-Functional Trainer features 16 levels of adjustment along its stainless-steel frame, alongside commercial-grade nylon pulley wheels for smooth movement through every rep, and comes with a v-bar row attachment, a short bar, a lat bar and two single handle attachments.
The integrated 250kg-rated smith machine provides the option for training on a fixed plane of motion, which is great for isolating muscles and providing added stability. Compatible with Olympic weight plates, the smith bar weighs 18.5kg on its own and now features enhanced knurling, delivering the authentic feel of an Olympic barbell. The smith machine even comes with a shoulder pad for extra comfort during specific movements.
With a pair of j-hooks and safety arms included, you can perform all your big lifts off the front of the rack like a typical squat rack with your own barbell and weight plate set. A maximum weight capacity of 350kg means it’s ready for whatever you can throw at it.
For bodyweight training fans, the Advanced Multi-Functional Trainer has an integrated pull-up bar with multiple grip options for wide, narrow and neutral pull-ups.
PRODUCT INFORMATION
- Package Weight (KG): 783.000000
ADDITIONAL FEATURES
- Assembled Dimensions HxWxD: 230.6 x 199.5 x 213.5 cm
- Depth (inside rack): 148.25 cm
- Assembled Weight: 650kg
- Weight Stacks: 2x 90kg (2;1 ratio, feels like 45kg), 1x 120kg (1;1 ratio, feels like 120kg)
- Increments: 4.5kg, built-in 2.5kg incremental weight plate
- Pulleys: 2x adjustable cable pulleys, 1x upper and lower central pulley. Commercial-grade nylon pulley wheels
- Pulley Adjustments: 16
- Smith Bar: 18.5kg, knurled
- Included Attachments: Adjustable dip bars, lat pulldown bar, short bar, 2x j-hooks, 2x spotter arms, 6x weight plate storage poles, 2x single handle attachments, lat seat, landmine, v-bar row, brace plates, barbell pad
- Bar Compatibility: 6ft international, all 7ft bars
- Frame: 50 x 50 x 2mm stainless steel front supports
- Hole Spacing: 100mm
- Hole Size: 20.5mm
- Maximum Weight Load: Smith bar – 250kg, J-hooks and safeties – 350kg
FREQUENTLY ASKED QUESTIONS
MuscleSquad suggest a ceiling height of at least 230.6cm, plus 5cm clearance for installation.
WARRANTY
Home Use: Frame - 10 Years, Accessories, Pulleys & Cables - 2 years, Everything else - 1 yearSee our customer review(s) of this product
