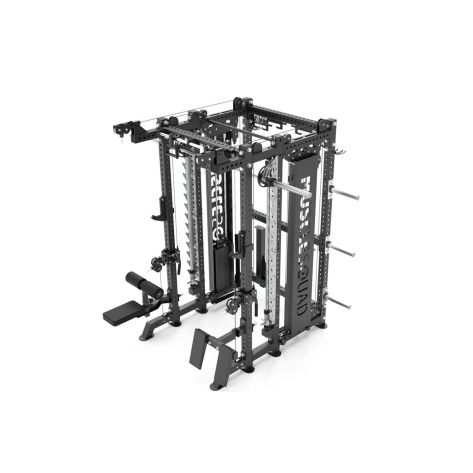

MuscleSquad Phase 4 Cable Equipped Multi-Functional Squat Rack with Smith Machine
Product Code: MSP4MFTSM
A fully functioning squat rack complete with j-hooks and spotter arms, a multi-functional trainer with 4-cable pulley system and a 250kg-rated smith machine, the commercial-grade MuscleSquad Phase 4 Cable Equipped Multi-Functional Squat Rack with Smith Machine is the focal point of any commercial gym setting. Features include two 100kg weight stacks, a heavy-duty 75x75x3mm powder-coated steel frame and all the accessories a user could need.
Our Price
£4,495
£374.58 per month with 0% APR finance.
Learn more
PRODUCT DESCRIPTION
Built with everything a commercial gym, personal training studio or home gym setup needs to offer total-body strength training, the MuscleSquad Phase 4 Cable Equipped Multi-Functional Squat Rack with Smith Machine is the ultimate, all-encompassing machine.
The rack features a four-pulley design – two adjustable and two fixed. The adjustable pulleys that run the length of the frame operate on a 2:1 basis, while the fixed pulleys operate on a 1:1 basis. The 2:1 ratio gives you more cable travel and smaller incremental weight jumps, which is ideal for more isolated exercise work, while the 1:1 ratio lets you feel the full weight of the 100kg stacks during high pulley movements like lat pulldowns.
The integrated smith bar (22kg) provides the stability and safety of training on a fixed plane of motion, letting users lift alone without the need for a spotter. The smith machine is compatible with Olympic weight plates, with a maximum weight capacity of 250kg.
The Phase 4 Cable Equipped Multi-Functional Squat Rack with Smith Machine comes with a pair of j-hooks and spotter arms included, turning the rack into a traditional rack. Other attachments that come with the machine include adjustable chin-up grips, a low row footplate, a lat pulldown seat with adjustable leg brace, claw barbell storage and more. Don’t worry, MuscleSquad included a rear storage bar to keep your accessories and attachments organised when they’re not being used.
PRODUCT INFORMATION
- Package Weight (KG): 568.000000
PRODUCT INFORMATION
- Package Weight (KG): 568.000000
ADDITIONAL FEATURES
- Assembled Dimensions HxWxD: 232 x 221.2 x 161.6 cm
- Assembled Dimensions (including lat seat) HxWxD: 232 x 221.2 x 191.2 cm
- Assembled Weight: 610kg
- Frame: 75 x 75 x 3mm powder-coated steel
- Weight Stacks: 2x 100kg (200kg total)
- Pulleys: 4 – 2x fixed (1;1), 2x adjustable (2;1)
- Smith Machine: 22kg, 15 racking positions
- Smith Machine Weight Capacity: 250kg
- Included Attachments: Adjustable chin-up grips, 2x sandwich j-hooks, 2x spotter arms, 6x weight plate storage poles, 2x claw barbell storage, branded rear cable attachment hooks, rear storage bar, laser cut weight plate guards, lat pulldown seat and adjustable leg brace (removable), low row footplate (removable), resistance band pegs, aluminium pulleys
- Bar Compatibility: 6ft international, all 7ft bars
- Hole Spacing: 50mm
- Hole Size: 21mm
- Maximum Load: 350kg
- Boltable to the Floor: No (uses front stabiliser feet)
- Note: The Phase 4 Cable Equipped Multi-Functional Squat Rack with Smith Machine is only compatible with Phase 4 or cross-compatible accessories
FREQUENTLY ASKED QUESTIONS
What is the minimum recommended ceiling height?
MuscleSquad suggest a ceiling height of at least 232cm, plus 5cm clearance for installation.
WARRANTY
Home & Light/Full Commercial Use:
Frame - 10 Years, Accessories, Pulleys & Cables - 2 years, Everything else - 1 year
